The Flexion Family

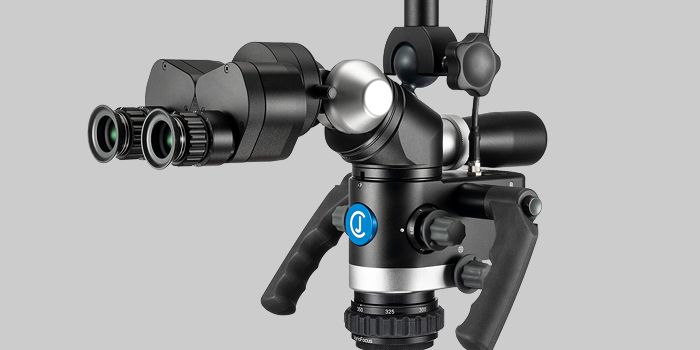

FLEXION BASIC
- MonoGlobe weightless movement balancing system
- 5 step full Apochromatic German optics
- Choose between VarioFocus4 (200-350mm Plan-APO) or VarioFocus5 (210-500mm Plan-APO)
- Fan-less LED 100,000 Lux lighting WITHOUT spot diaphragm
- Orange filter (prevents composite cure)
- Swivel arm / HDMI / 24V

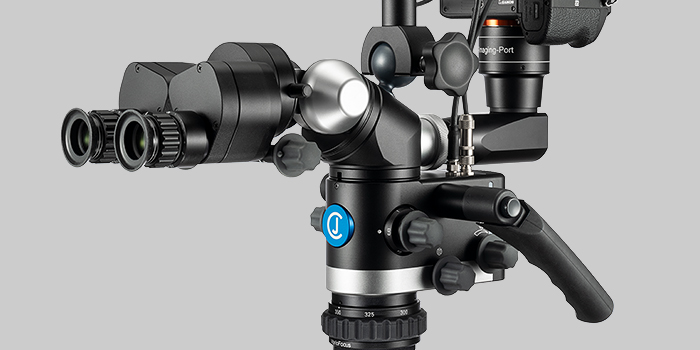

FLEXION ADVANCED
- MonoGlobe weightless movement balancing system
- 5 step full Apochromatic German optics
- Choose between VarioFocus4 (200-350mm Plan-APO) or VarioFocus5 (210-500mm Plan-APO)
- Fan-less LED 100,000 Lux lighting WITH spot diaphragm
- Orange filter (prevents composite cure)
- Swivel arm / HDMI / 24V / USB
- 4K or HD-Imaging-Port included

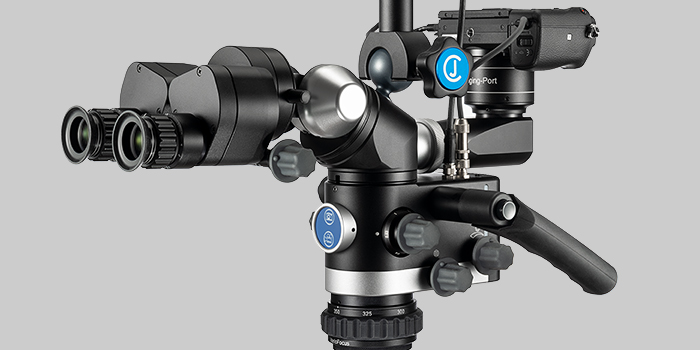

FLEXION ADVANCED SensorUnit
- Includes ALL features of the Flexion Advanced
- SensorUnit - Control photo and video recording easily with a hand gesture

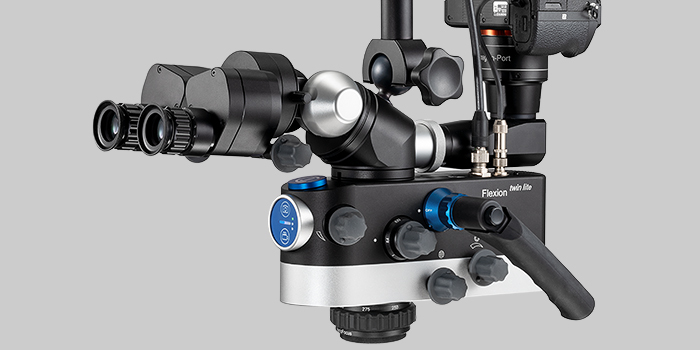

FLEXION TWIN LITE
- Includes ALL features of the Flexion Advanced SensorUnit
- TWIN LITE BLUE: Additional LED light source (BLUE) improves identification of restorative materials, tartar and caries
- TWIN LITE WHITE: Additional LED light source (WHITE) beam for up to 200,000 Lux of white light
- Choice between Orange filter (prevents composite cure) and Natural filter (closer to real warm light and increases the preparation time when working with composite)

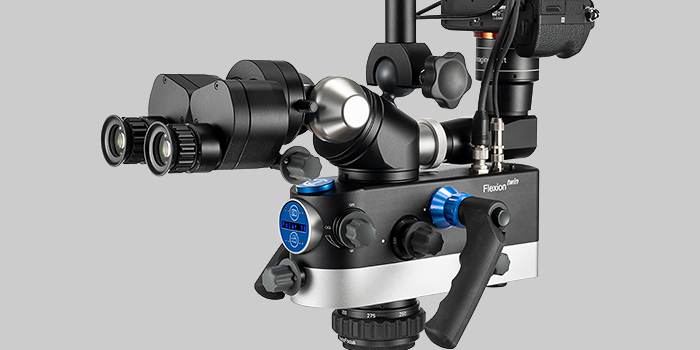

FLEXION TWIN
- Includes ALL features of the Flexion Twin lite
- 4 powerful filters: Orange (prevents composite cure), Polarizing (antiglare), Natural (closer to real warm light and increases the preparation time when working with composite) and Green (improves visibility of the blood supply)
- Display for filter visualization

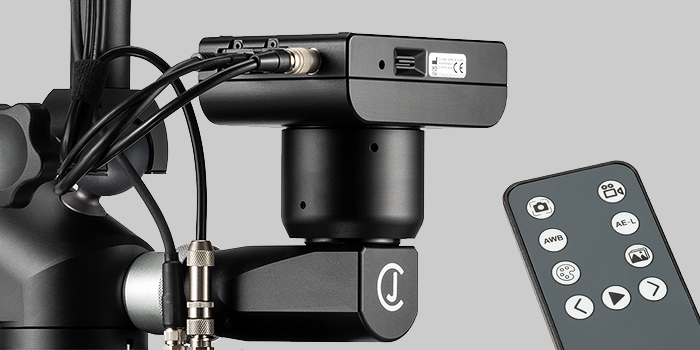

FLEXIONCAM
- Unmatched Resolution – Capture every detail with razor-sharp 4K clarity
- Next-Gen Optics – Our revolutionary optical concept redefines what’s possible in a dental microscope
- App-Controlled Flexibility – Adjust and operate your camera with a tap. Total control, wherever you are
- Pro-Level Streaming & Recording – Stream and save in full 4K at 60 fps with our powerful PC software. Seamless. Reliable. Stunning!
See what your colleagues are saying
Read our 5 testimonials
CJ-Optik
Made in Germany
CJ-Optik production is located in Asslar in the immediate vicinity of the “City of Optics” Wetzlar. Production is according to CE and ISO 9001:2015 ensuring the highest quality and reliability.
Advanced Microscopy
CJ-Optik has quickly become one the leading companies in the field of dental microscopy. With important distributors in 75 countries around the world, CJ-Optik offers a range of efficient solutions in the interests of dentists and patients.
Customer satisfaction is the cornerstone to success, with an objective to do everything to maintain customer confidence.
This is accomplished through a goal of always producing top-quality products. Through many years of experience, innovation and technical progress, the trained design and production team are focused on listening to client concerns.
The growing family of CJ-Optik users around the world has led to continual innovation and a family of products that precisely meet the needs of the growing number of dental professionals that choose CJ-Optik to produce the highest levels of dentistry available today.
Contact us today or schedule an appointment
Technical information

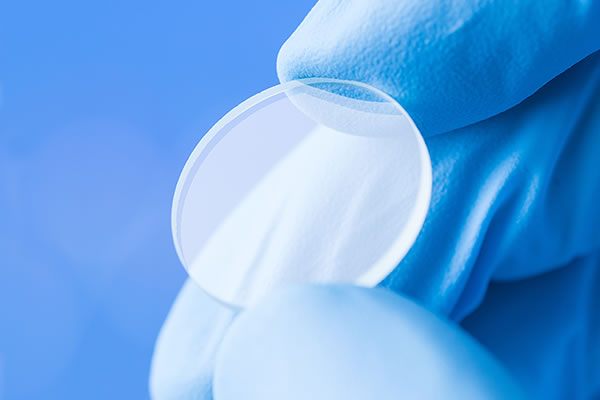

| Apochromatic optics with the latest index-matched coatings are integrated, offering the highest correction available for aberration, color, light transmission, and distortion. Precise and innovative construction provides superior ergonomic placement of all functions and controls, along with unparalleled ease-of-movement! Cj-Optik Flexion microscopes are highly acclaimed for their superior image quality. The full apochromatic optical lense system will detect the finest colour and structure details without distortion. Flexion Basic: Semi-APO lense system |  |
| The fan-less LED spot lighting provides a well-lit treatment area with high colour rendering index and 5,400 K. Future-proof with 65,000 hours lifespan. The spot diaphragm focuses light on the exact treatment site to aid the assistant and eliminate unnecessary lighting. Flexion Basic: LED 100,000 Lux lighting WITHOUT spot diaphragm |  |

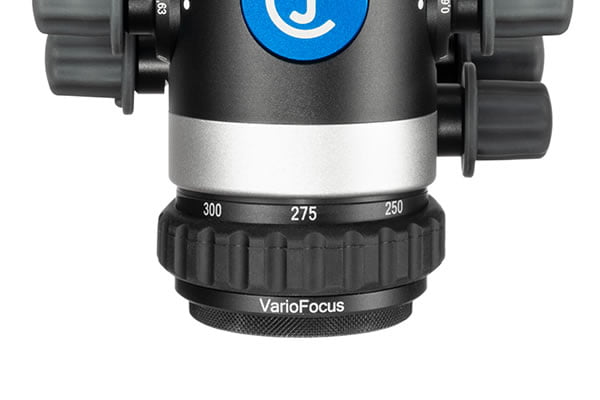

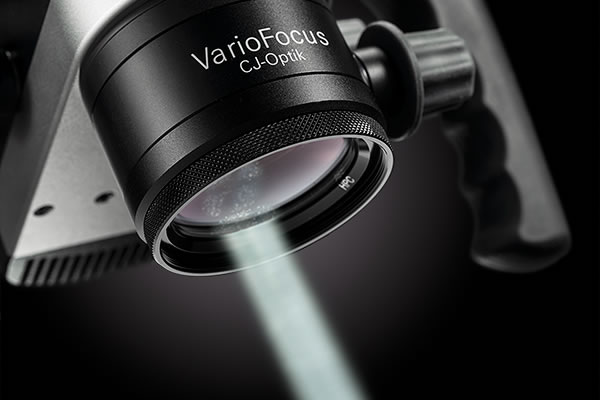

Choose from either the VarioFocus4 with 200-350mm range or the VarioFocus5 with 210-500mm working distance. Index matching coating and plan-apochromatic correct optics offer the highest light transmission and low reflection rates for optimal viewing and documentation. Removable protection cover lens with Hydrophobic Coasting (HPC). Flexion Basic & Advanced: HPC is an option |  |

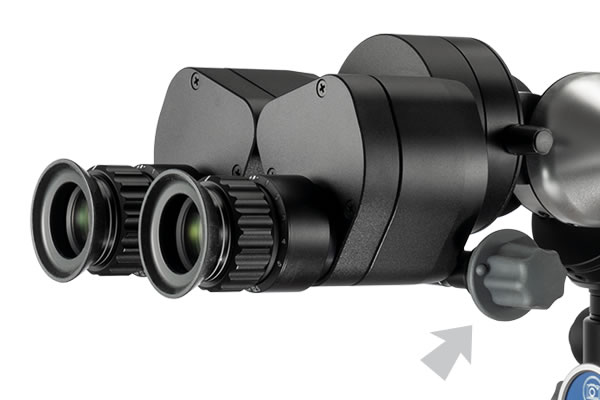

CJ-Optik microscopes offer individual eyecup diopter adjustment, large eye relief and exit pupil. An optional IPD adjustment knob allows for more precise adjustments with one hand.
|  |
The dentist and microscope must work as a unit that easily adapts to the patient with flexibility. The dentist must retain and upright, ergonomic and relaxed treatment posture to prevent long-term neck and back injuries. |  |

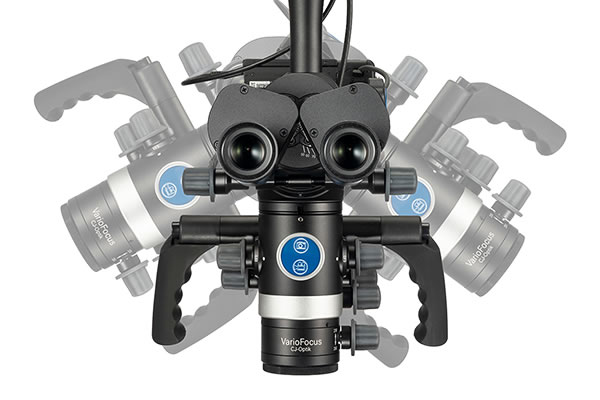

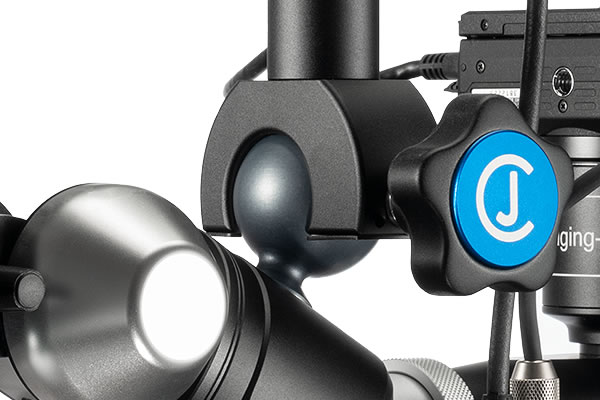

The masterly designed MonoGlobe is the weightless movement balancing system. The coupling system allows fluid and smooth repositioning at all angles without having to loosen and retighten knobs. |  |

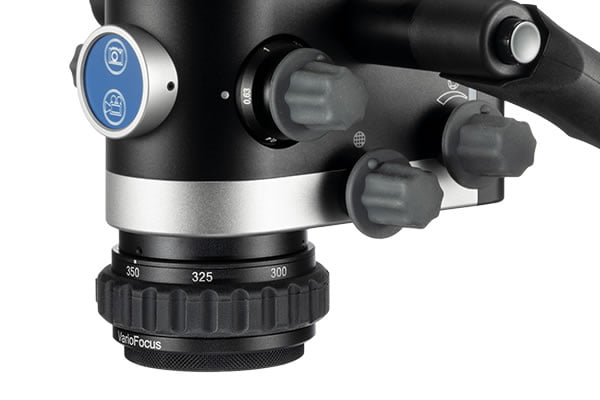

Ergonomically placed control knobs and handles ensure that all functions are easily and quickly accessible for all procedural changes. |  |

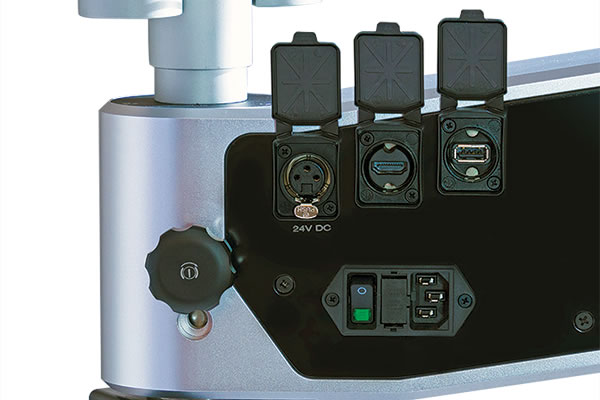

| HDMI exit, USB exit*, camera AC/DC power* and 24-v monitor power supply are all integrated within the arm for tidy cable management. USB, HDMI, medical monitor power are integrated for improved workflow. There are no fragile fibre-optic cable that can break or get tangled. *Not available for the Flexion Basic |  |

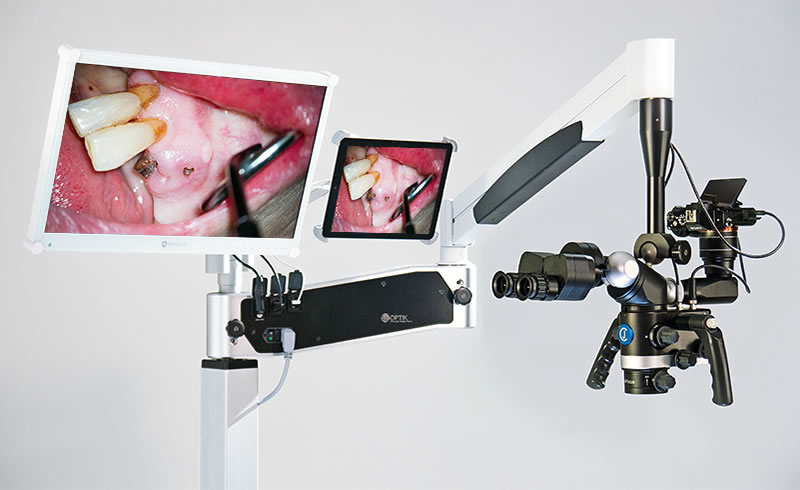

Document in 4k, HD or a smartphone. Focal lengths and optics have been uniquely designed for an ideal match to today’s latest digital cameras.
(4K Images taken with a 4K digital camera)

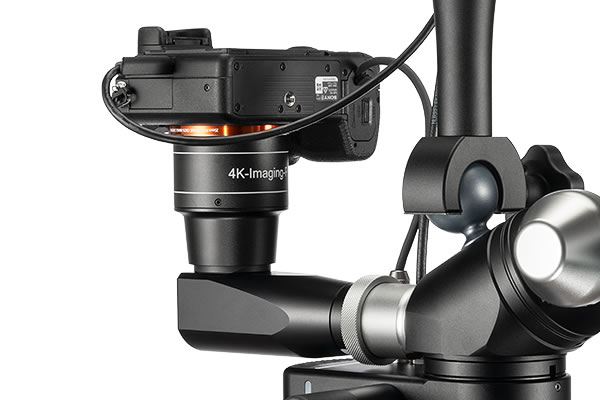

4K-Imaging-Port
For Sony, Nikon & Canon FullFrame cameras

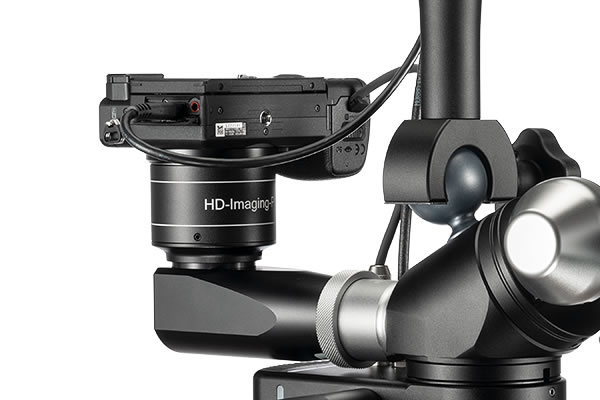

HD-Imaging-Port
For Sony, Nikon & Canon APS-C cameras

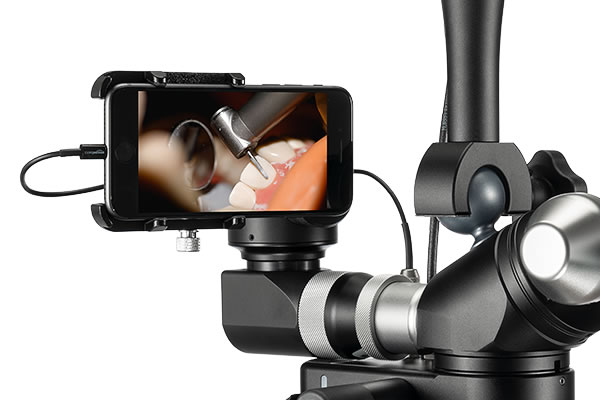

Phone-Imaging-Port
Adapter compatible with all smartphones

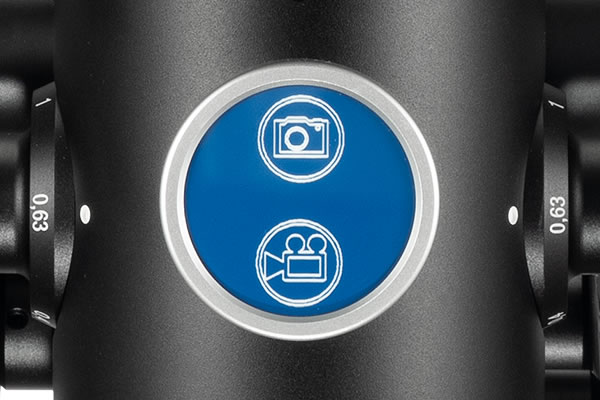

SensorUnit
Controls photo or video recordings easily with a hand gesture for Sony cameras (4K FullFrame & HD APS-C)
Not available with Flexion Basic & Advanced
Full Connectivity
Swivel arm with HDMI, 24V, USB*, direct power supply for the camera* from the microscope
*Not available with Flexion Basic

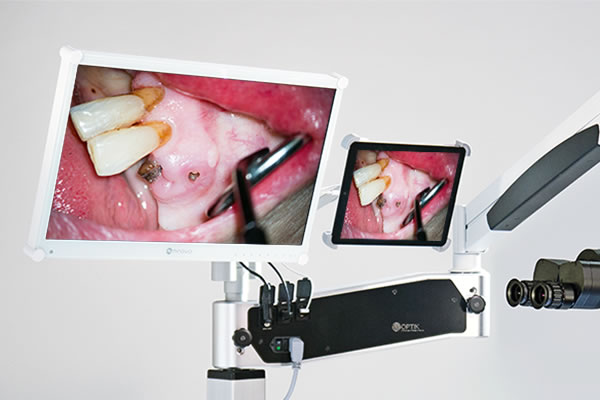

4K & HD Monitors
Adapter compatible with most 4K / HD monitors and iPads

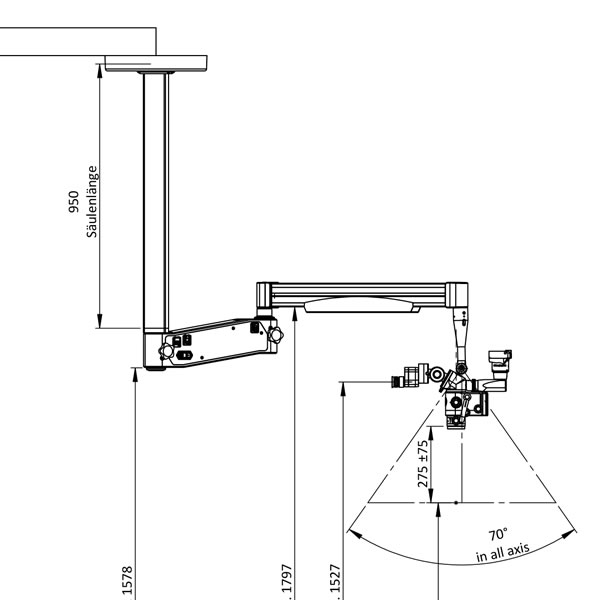

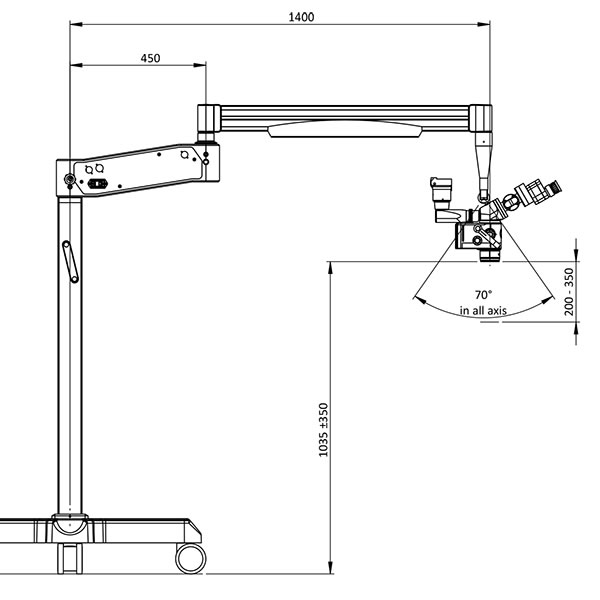

| Click the image below to see complete measurements
|  |

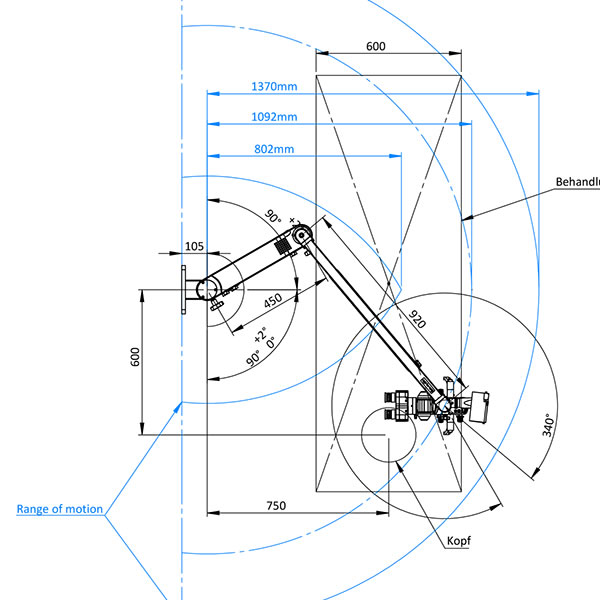

| Click the image below to see complete measurements
|
|
| Click the image below to see complete measurements
|  |
Testimonial of Dr. Gerardo Chacon (2:10 min.) | Highlights of Dr. Chacon course using CJ-Optik Microscopes (2:05 min.) |
Introduction video (2:52 min.) | Overview testimonial video (2:50 min.) |
Testimonial of Dr. Alan Mead (2:25 min.) | Dr. Stephen Kuzmak using the CJ-Optik microscope (0:58 min.) |
Corrective procedure using the CJ-Optik microscope (2:07 min.) |
